Description
|
Model |
SC270/270D |
SC270/270TD |
|
Payload capacity |
2×2700kg |
2×2700kg |
|
Erection load capacity |
2×2700kg |
2×2700kg |
|
Lifting speed |
0-46m/min |
0-63m/min |
|
Control type |
Inverter |
Inverter |
|
Motor type |
Nord |
Nord |
|
Motor power |
2×3×11Kw |
2×3×15Kw |
|
Motor quantity |
2×3sets |
2×3sets |
|
Reducer rate |
1: 16 |
1: 16 |
|
Max.height |
300m |
300m |
|
Lifting device capacity |
2×250kg |
2×250kg |
|
Load dispatching fuse current |
2×90A |
2×90A |
|
Mast section weight |
150kg |
150kg |
|
Mast section length |
1508mm |
1508mm |
|
Mast section material |
Painted / Galvanized |
Painted / Galvanized |
|
Mast section Rack |
Double |
Double |
|
Tie-in type |
II type |
II type |
|

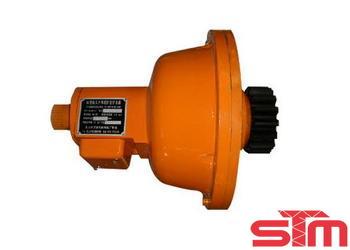

Safety Device |
SAJ50-1.2 |
SAJ50-1.2 |
|
Inverter Brand |
Schneider |
Schneider |
|

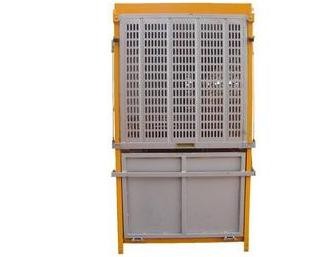

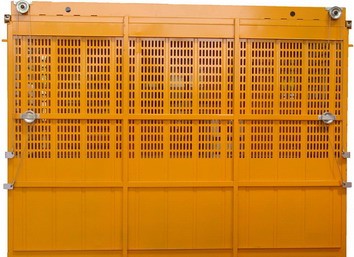

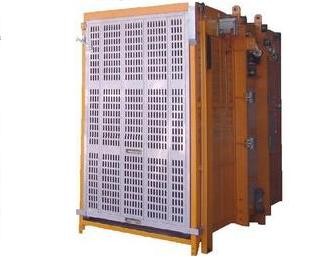

Cage material |
Punched Aluminum |
Punched Aluminum |
|
Cage Size |
3.2×1.5×2.3m / 3×1.3×2.5m |
3.2×1.5×2.3m / 3×1.3×2.5m |
|
Cage weight |
2400kg |
2400kg |
|
Cable Drum |
Inclusive |
Inclusive |
|
Cable Trolley |
Height>100m |
Height>100m |
|
Main Components Quantity |
SC270/270D |
SC270/270TD |
|
Punched Aluminum Cage |
2sets |
2sets |
|
Master controller(Joystick) |
2sets |
2sets |
|
Safety Control Board (Safety & Overload device) |
2sets |
2sets |
|
3-phase switch |
2nos |
2nos |
|
Up and down limit cam |
2sets |
2sets |
|
Delay limit cam |
2sets |
2sets |
|
Ladder |
2sets |
2sets |
|
Enclosure |
2sets |
2sets |
|
Base frame |
2sets |
2sets |
|
Power box |
2sets |
2sets |
|
Spring |
6nos |
6nos |
|
Foundation frame |
2sets |
2sets |
|
Motor & Reducer |
2×3sets |
2×3sets |
|
Single Rack Mast Section |
according to height |
according to height |
|
type II Tie-in |
according to height |
according to height |
|
Jib Crane |
2sets |
2sets |
|
Cable Drum |
2sets |
2sets |
|
Cable Trolley (Option) |
2sets |
2sets |
|
Control Panel |
2sets |
2sets |
