Description
|
Property Model No. |
||
|
Rated load（kg） |
500 |
|
|
Lifting speed（m/min） |
9～11 |
|
|
Motor power（Kw） |
2×1.5 |
|
|
Brake torque（Km） |
16 |
|
|
Steel rope angle adjusting range |
3°- 8° |
|
|
Distance between two steel rope |
≤100 mm |
|
|
Rated stretch of front beam |
1500 mm |
|
|
Suspending platform |
Locking |
Aluminum alloy |
|
Nr.Of platform rack |
Single rack |
|
|
Nr.Of platform |
2 |
|
|
L×W×H（m） |
(2.5*2) *0.69*1.18/ (2+3) *0.69*1.18 |
|
|
Weight（Alu） |
350 Kg |
|
|
Weight（Steel） |
410 Kg |
|
|
Suspending mechanism(kg) |
2×175 Kg |
|
|
Counterweight(kg) optional |
25×30pcs |
|
|
Diameter of steel rope(mm) |
8.3 |
|
|
Max Lifting height(m) |
250 |
|
|
Motor rotation speed(r/min) |
1420 |
|
|
Parapet Clamp optional |
2x90Kgs |
|
|
Voltage(v) 3/ 2 PHASES |
220V / 380V / 440V. 50Hz /60Hz |
|
|
Components quantity |
ZLP500 |
|
|
LTDHOIST |
2 pieces |
|
|
LSG Safety Lock |
2 pieces |
|
|
Electrical Control Box |
1 piece |
|
|
Working Platform |
(2.5m*2sections/ 2m+3m) |
|
|
Steel Wire Rope |
100m*4pcs |
|
|
Electrical Cable |
100m |
|
|

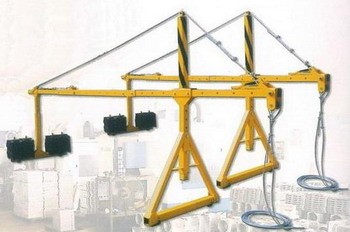

Hot Galvanized Suspension Mechanism /Parapet Clamp |
2pics*175kgs |
|
|
Reinforcing rope |
7m |
|
|
Hanger plate |
2 pieces |
|
|
Caster wheel |
4 Pieces |
|
|
Heavy hammer |
4 pieces |
|
|
Standard components |
1 plywood case |
|
|
Counter Weight |
30pcs*25kgs/pcs |
|
|
Safety Lock
|
Model |
LSF308 |
|
Max Capacity |
500Kg |
|
|
Allowed Impact Force |
30 kN |
|
|
Cable Locking Angle |
3° - 8° |
|
|
Rope Lock Distance |
≤100mm |
|
|
Wire Rope Diameter |
8.3 mm |
|
Hoist motor
|
Model |
LTD50 |
|
Rated Lifted Load |
500Kg |
|
|
Lifting Speed |
9.3 ± 0.5 m/min |
|
|
Weight |
50Kg |
|
|
Wire Rope Diameter |
8.3mm |
|
|
Overall Dimension |
310*250*600mm |
|
|
Voltage |
220V/ 380 V/ 440V |
|
|
Frequency |
50 Hz / 60Hz |
|
|
Rated Power |
1.5 Kw |
|
|
Braking Torque |
15Nm |
|
|
Rotating Speed |
1400 r/min |
