Description
|
Property Model No. |
||
|
Rated load（kg） |
630 |
|
|
Lifting speed（m/min） |
9～11 |
|
|
Motor power（Kw） |
2×1.5 |
|
|
Brake torque（Km） |
16 |
|
|
Steel rope angle adjusting range |
3°- 8° |
|
|
Distance between two steel rope |
≤100 mm |
|
|
Rated stretch of front beam |
1500 mm |
|
|

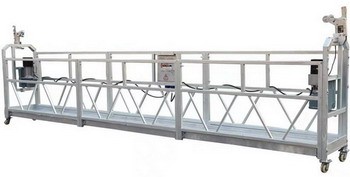

Suspending platform |
Locking |
Aluminum alloy |
|
Nr.Of platform rack |
Single rack |
|
|
Nr.Of platform |
3 |
|
|
L×W×H（m） |
(2*3)*0.69*1.18 |
|
|
Weight（Alu） |
375 Kg |
|
|
Weight（Steel） |
480 Kg |
|
|

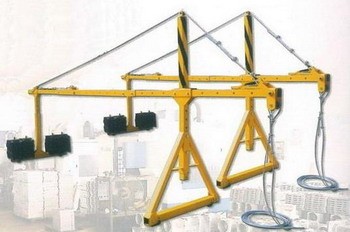

Suspending mechanism(kg) |
2×175 Kg |
|
|
Counterweight(kg) optional |
25×36pcs |
|
|
Diameter of steel rope(mm) |
8.3 |
|
|
Max Lifting height(m) |
250 |
|
|
Motor rotation speed(r/min) |
1420 |
|
|

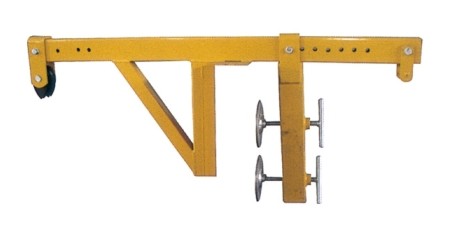

Parapet Clamp optional |
2x90Kgs |
|
|
Voltage(v) 3PHASES |
380V 50Hz |
|
|
Components quantity |
ZLP630 |
|
|
LTDHOIST |
2 pieces |
|
|
LSG Safety Lock |
2 pieces |
|
|
Electrical Control Box |
1 piece |
|
|
Working Platform |
2.0m*3sections |
|
|
Steel Wire Rope |
100m*4pcs |
|
|
Electrical Cable |
100m |
|
|
Hot Galvanized Suspension Mechanism /Parapet Clamp |
2pics*175kgs |
|
|
Reinforcing rope |
7m |
|
|
Hanger plate |
2 pieces |
|
|
Caster wheel |
4 Pieces |
|
|
Heavy hammer |
4 pieces |
|
|
Standard components |
1 plywood case |
|
|
Counter Weight |
36pcs*25kgs/pcs |
|

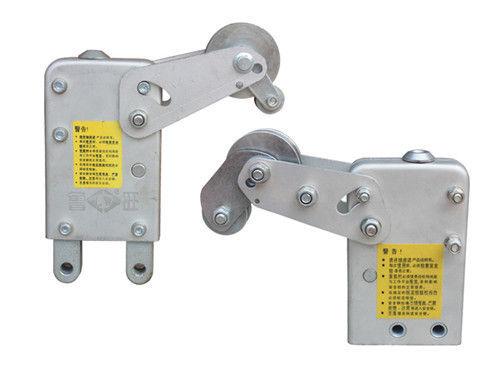

Safety Lock
Model
LSF308
Max Capacity
630Kg
Allowed Impact
Force
30 kN
Cable Locking
Angle
3° - 8°
Rope Lock
Distance
≤100mm
Wire Rope Diameter
8.3 mm
Hoist motor
Model
LTD63
Rated Lifted Load
630Kg
Lifting Speed
9.3 ± 0.5 m/min
Weight
50Kg
Wire Rope
Diameter
8.6mm
Overall Dimension
310*250*600mm
Voltage
220V/ 380 V/ 440V
Frequency
50 Hz / 60Hz
Rated Power
1.5 Kw
Braking Torque
15Nm
Rotating Speed
1400 r/min
